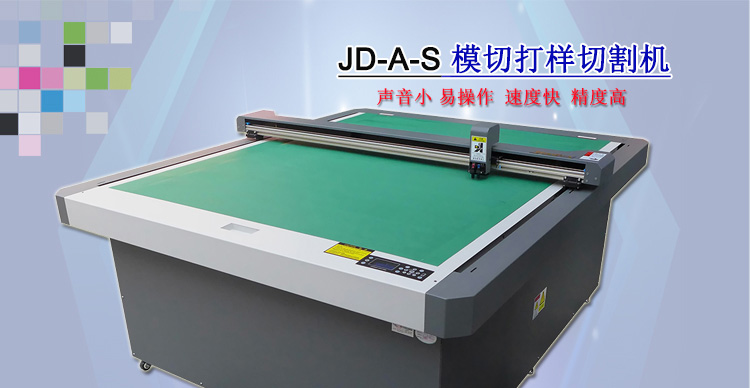

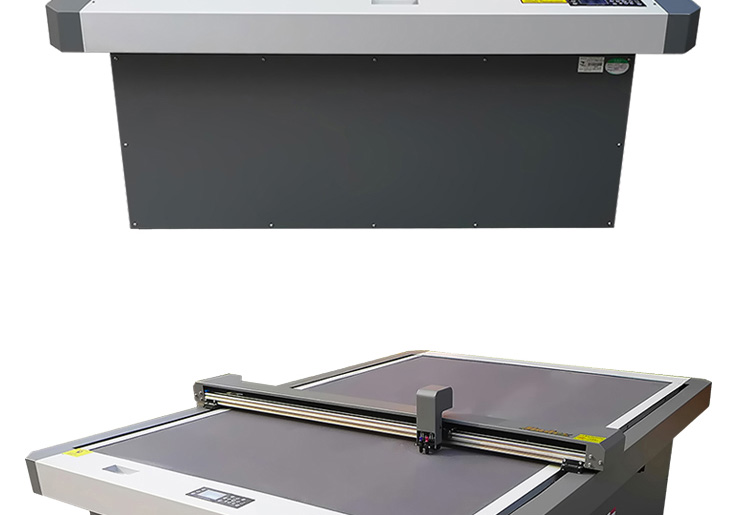

Electronic Materials Die-Proofer Machine JD-A-S Series
Type:
Electronic screen film
Model:
JD-A-0906S、JD-A-1209S、JD-A-1512S
Intro:

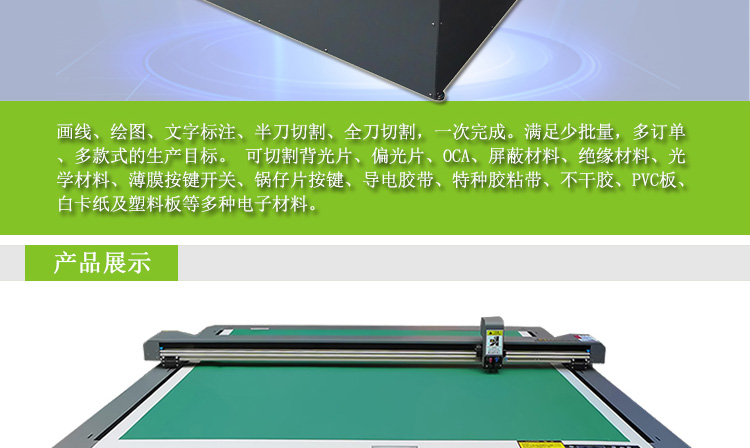

Line drawing, drawing, text annotation, half knife cutting, full knife cutting, a complete. Meet the production target of less batch, more orders and more styles. A variety of electronic materials are cuttable such as backlight, polarizer, OCA, shielding material, insulating material, optical materi
Contacts:
18923737801(wechat)Click there to chat with me.
Product introduction Return to the list








Function and Special Features

◇  Line drawing, drawing, text annotation, half knife cutting, full knife cutting, a complete. Meet the production target of less batch, more orders and more styles.

◇  The transmission system adopts imported linear guide rail, high speed, high precision, low sound, stable quality.

◇  Static board original imported parts from Japan, other parts and components also used a large number of imported products.

◇  The fastest cutting speed up to 1200mm/s.

◇  StandardI/O interface, in HP-GL format.

◇  Optional loading rack and automatic feeding device.

◇  Any CAD software can be connected, widely used in clothing, shoes, bags and handbags, laser knife mold drawing, lighting, advertising gifts, adhesive, color box packaging and other industries drawing and cutting.


Electronic Materials Die-Proofer Machine JD-A-S Series Technical Parameters Standard Table

Technical Parameters/Model

JD-A-1209S

JD-A-1509S

JD-A-1512S

Operating Characteristic

Computer operation and machine cutting can be performed simultaneously, as well data transmission can be completed quickly and used continuously.

Cutting Speed

Up to 1200mm/s

Cutting Thickness

≤2.0 MM

Cutting Material

Flexible circuit boards, shielding materials, insulating materials, optical materials, membrane button switches, pot buttons, conductive tape, special adhesive tape, stickers, PVC board, white cardboard and plastic plate,etc.

Cutting Method

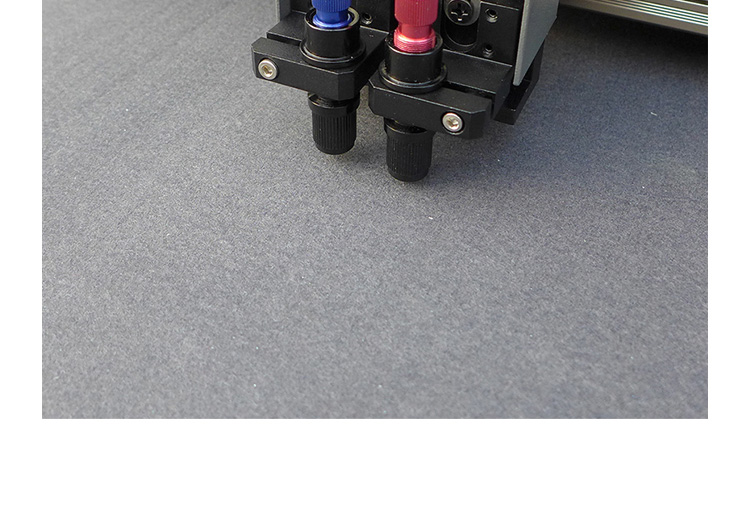

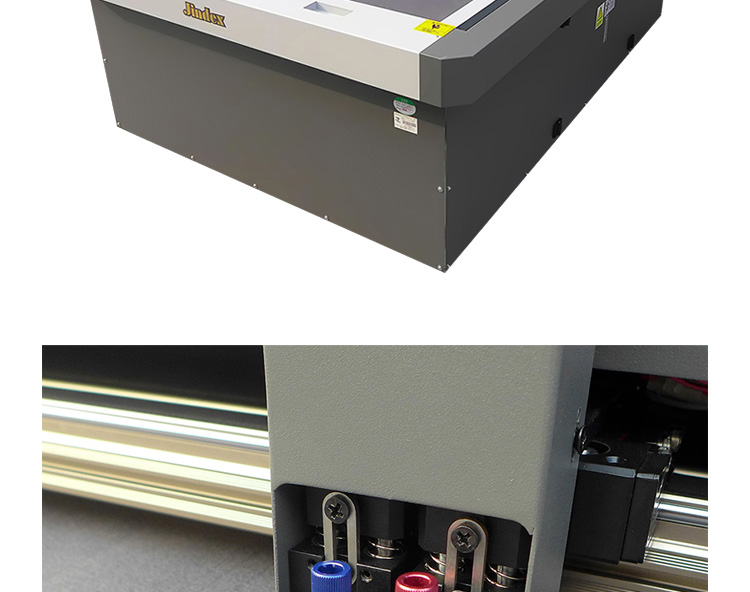

Multi-purpose knife holder, 4 sets of different strokes, half-knife, full-knife settings

Pen Type/Knife Type

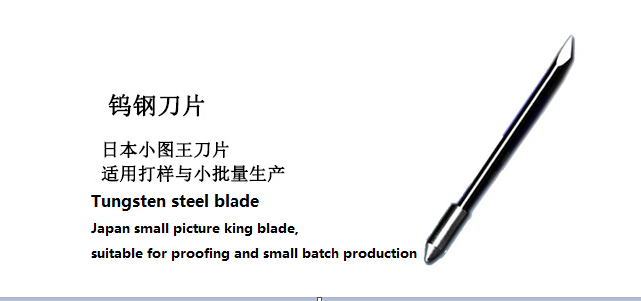

Ordinary signature pen, oil pen, ball pen / Special steel knife

Fixed Way

Double-sided adhesive paste / vacuum adsorption / electrostatic adsorption

Mechanical Resolution

0.005 mm

Software Resolution

0. 025mm、0. 01mm、0. 1mm optional

Cutting Circular Diameter

≧2mm diameter

Transmission Interface

Standard parallel port, serial port

Format Compatible

AI software, Autocad, Coreldraw and all box design software can be directly output without conversion, with automatic optimization

Command System

HP-GL&GP-GL

CNC Panel

Liquid crystal display and contact buttons

Transmission Material

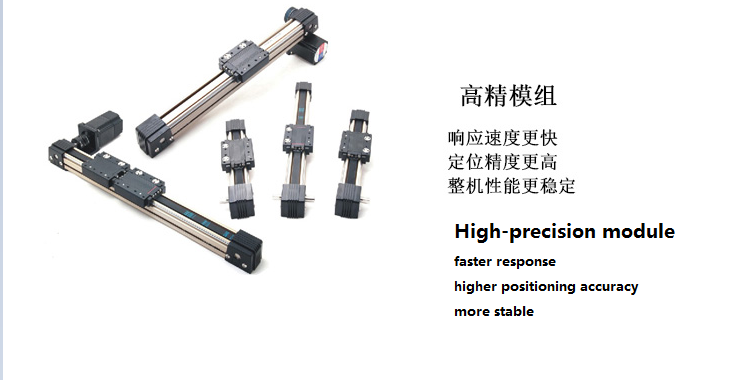

Linear guide, imported synchronous belt

 Voltage and Power

AC 220V  ± 10%, 50HZ;  Fuse Size 6A

Cutting Area

1200mm*900mm

1500mm*900mm

1500mm*1200mm

Appearance Size

1580x1330x920mm

1850x1330x920mm

1850x1610x920mm

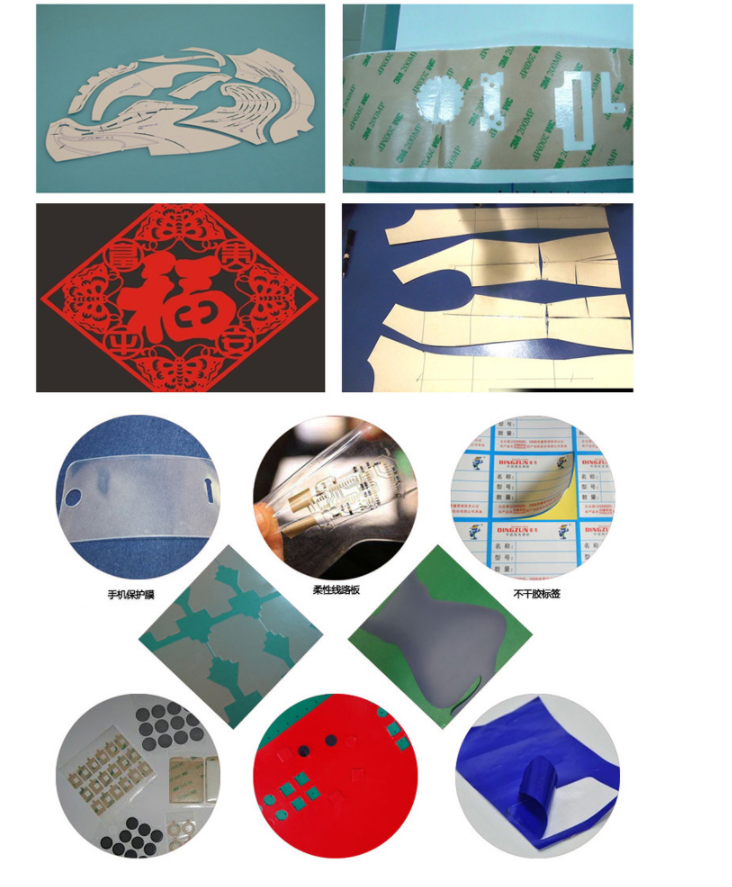

Samples
